The Halco Flat Panel Series is a family of highly efficient, versatile, configurable recessed fixtures, designed for recessed applications. The DLC Premium listed panels offer lumen output and color temperature selectability, making their versatility and simple aesthetic design perfect for educational, commercial and retail and applications. An optional 3.5mm receptacle allows for the additions of PIR and microwave sensors.

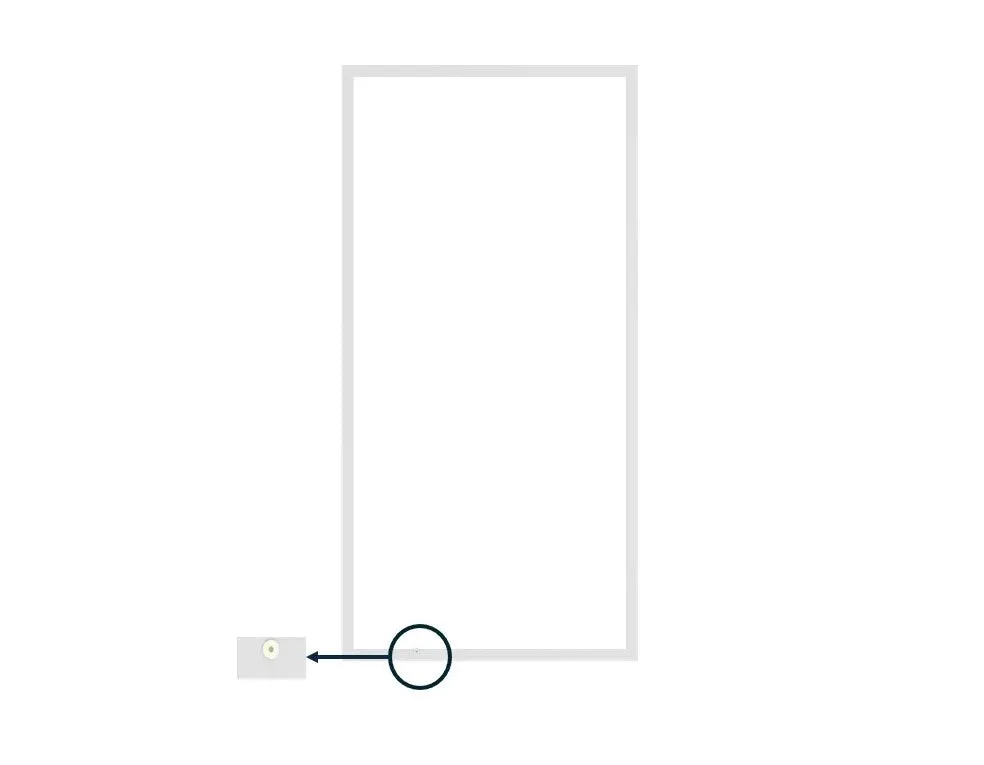

This is the Halco ProLED FPLCR-24-LS-CS-UNV (90523). This 2x4 LED Flat Panel consumes a selectable 30/35/45 watts of 120-277 volt energy and the driver has a power factor of 90%. The 90523 generates an average of 3,945-5,923 lumens - that's an efficacy of 125-145 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This selectable LED flat panel can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight with a simple toggle switch located on the back of the fixture, and has a CRI of at least 80. This 2x4 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Halco's LED Flat Panel fixtures carry a 5 Year Warranty and are rated for Damp locations.
Specifications
| Manufacturer | Halco Lighting Technologies |
| MPN | FPLCR-24-LS-CS-UNV |
| SKU | 90523 |
| UPC | 807154905232 |
| Lighting Technology | LED |
| Voltage | 120-277V |
| Frequency | 50/60Hz |
| Dimmable | Yes, 0-10V Dimming |
| Beam Angle | 115 Degrees |
| Rated Life | 50,000 Hours |
| CRI (Color Rendering Index) | 80 CRI |
| Power Factor | >0.9 |
| Housing | Steel Housing, Aluminum Frame |
| Lens | Polymethyl Methacrylate |
| Dimensions | 47-3/4" x 23-3/4" x 1-5/8" |
| Certifications | DLC Premium, Title 24 Compliant, FCC Compliant |
| DLC Product ID | |
| Environment | Damp Location |
| Warranty | 5 Year Standard |
| Wattage | 30 Watts | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 3,945 Lumens | 4,124 Lumens | 4,103 Lumens |
| Efficiency (Lumens Per Watt) | 135 LPW | 145 LPW | 140 LPW |
| Wattage | 35 Watts | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 4,531 Lumens | 4,767 Lumens | 4,717 Lumens |
| Efficiency (Lumens Per Watt) | 131 LPW | 143 LPW | 137 LPW |
| Wattage | 45 Watts | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 5,610 Lumens | 5,923 Lumens | 5,813 Lumens |
| Efficiency (Lumens Per Watt) | 125 LPW | 138 LPW | 130 LPW |
