Product Details

DueX 5 channel expansion board

- 5 x Additional TMC 2660 stepper motor drivers with stall notification

- 5 x Additional extruder heater outputs

- 5 x Servo outputs with 5V power and 5V signal levels, sharing control channels with the heaters, this allows you to repurpose unused heater channels to drive servos

- 5 x Additional endstop inputs with indicator LED’s and 3.3/5V voltage selection. These are also usable as outputs.

- 5 x Additional controlled fan outputs, these can also be used for driving LEDs etc. The output voltage can be switched between 5V, 12V and VIN

- 4 x General purpose uncommitted I/O pins

- 12V Switching regulator, for generating a 12V supply for fans, LEDs etc. This is for when VIN power is higher than 12V.

- 5 x Additional thermistor inputs.

- Support for 2 more thermocouple or PT100 daughter boards, supporting up to 4 more sensors.

- Optional 5V external power input for powering servos, fans etc.



DueX 2 channel expansion board

- 2 x Additional TMC 2660 stepper motor drivers with stall notification

- 2 x Additional extruder heater outputs

- 2 x Servo outputs with 5V power and 5V signal levels, sharing control channels with the heaters, this allows you to repurpose unused heater channels to drive servos

- 2 x Additional endstop inputs with indicator LED’s and 3.3/5V voltage selection. These are also usable as outputs.

- 2 x Additional controlled fan outputs, these can also be used for driving LEDs etc. The output voltage can be switched between 5V, 12V and VIN

- 4 x General purpose uncommitted I/O pins

- 12V Switching regulator, for generating a 12V supply for fans, LEDs etc. This is for when VIN power is higher than 12V.

- 2 x Additional thermistor inputs.

- Support for 2 more thermocouple or PT100 daughter boards, supporting up to 4 more sensors.

- Optional 5V external power input for powering servos, fans etc.

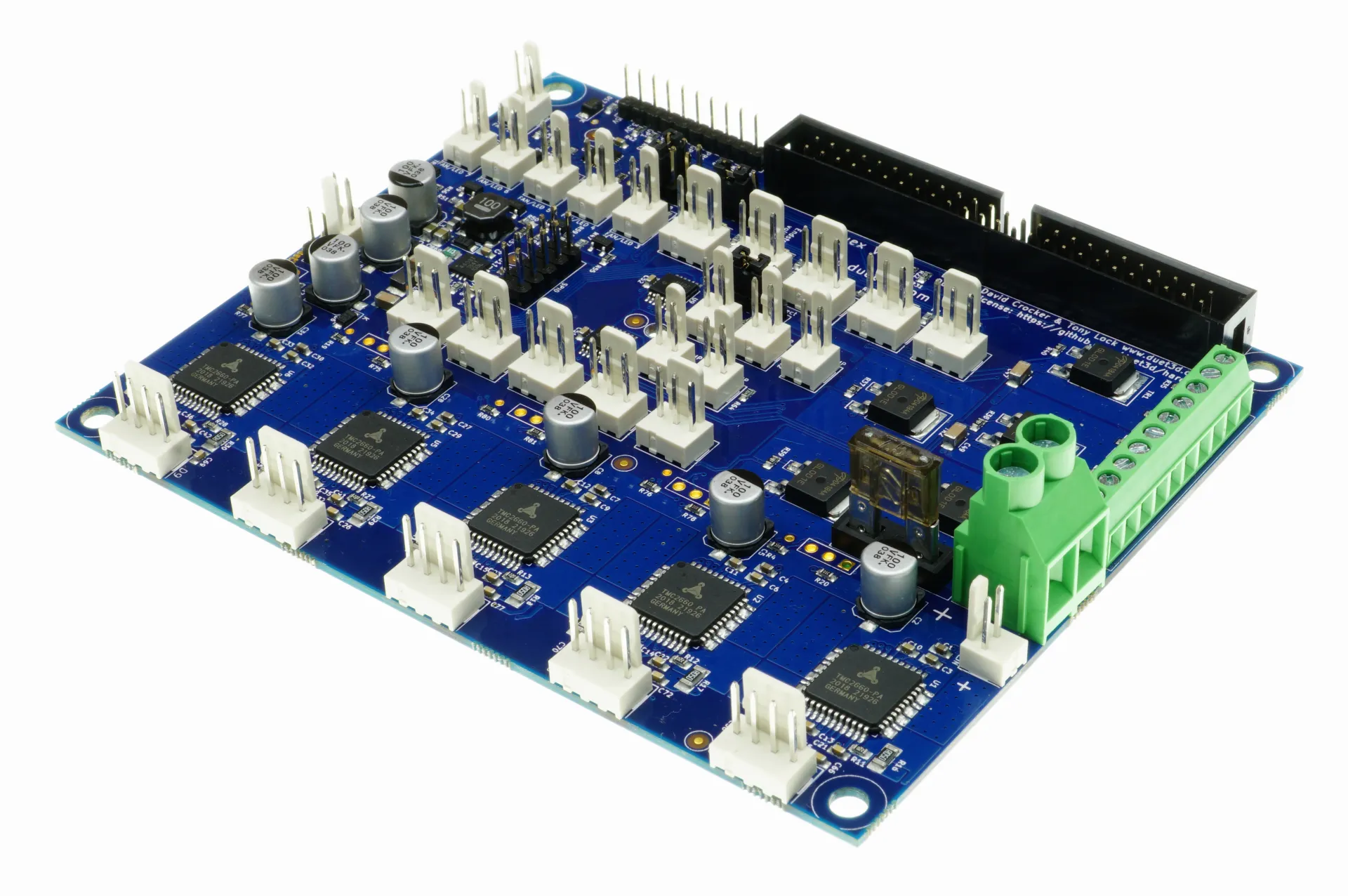

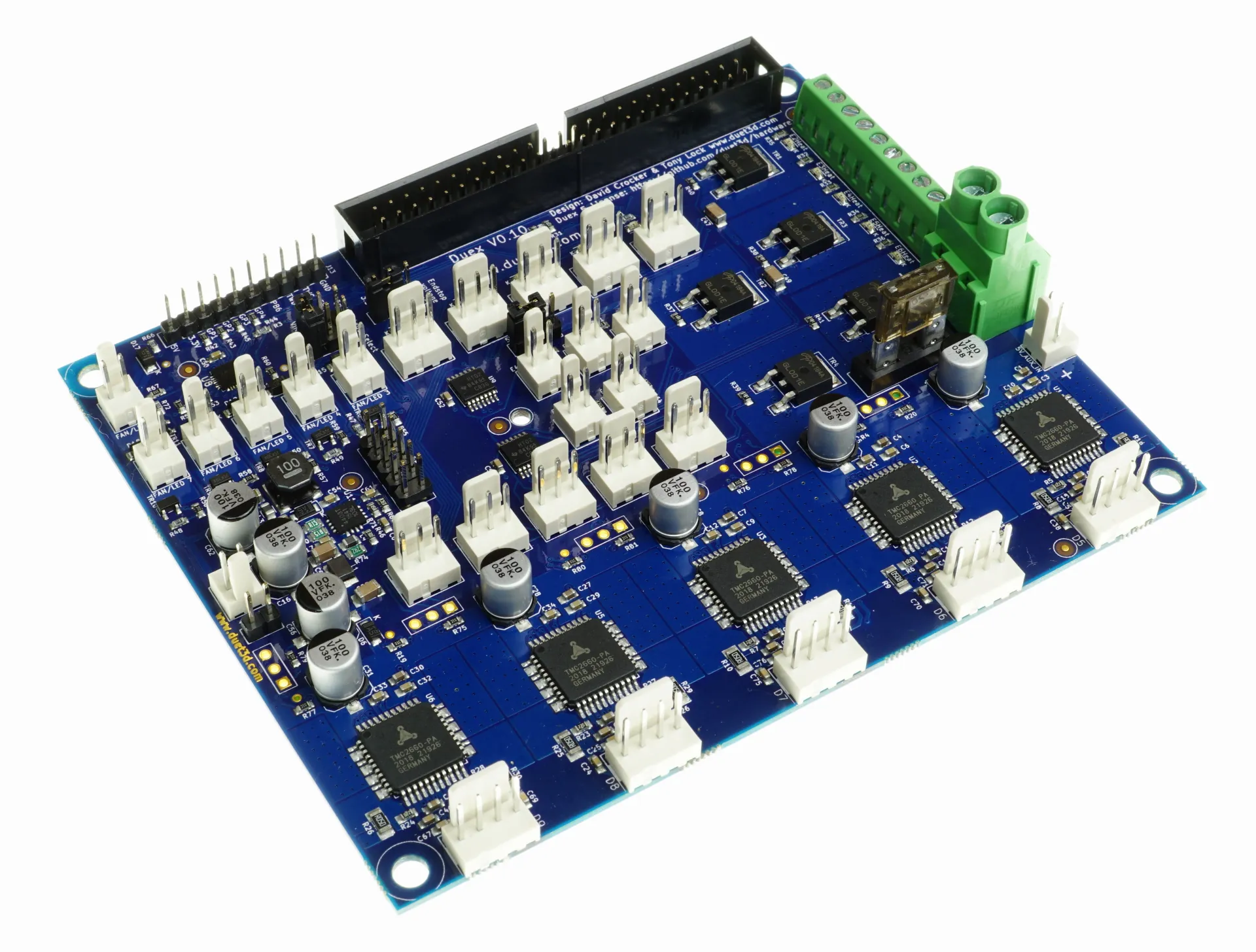

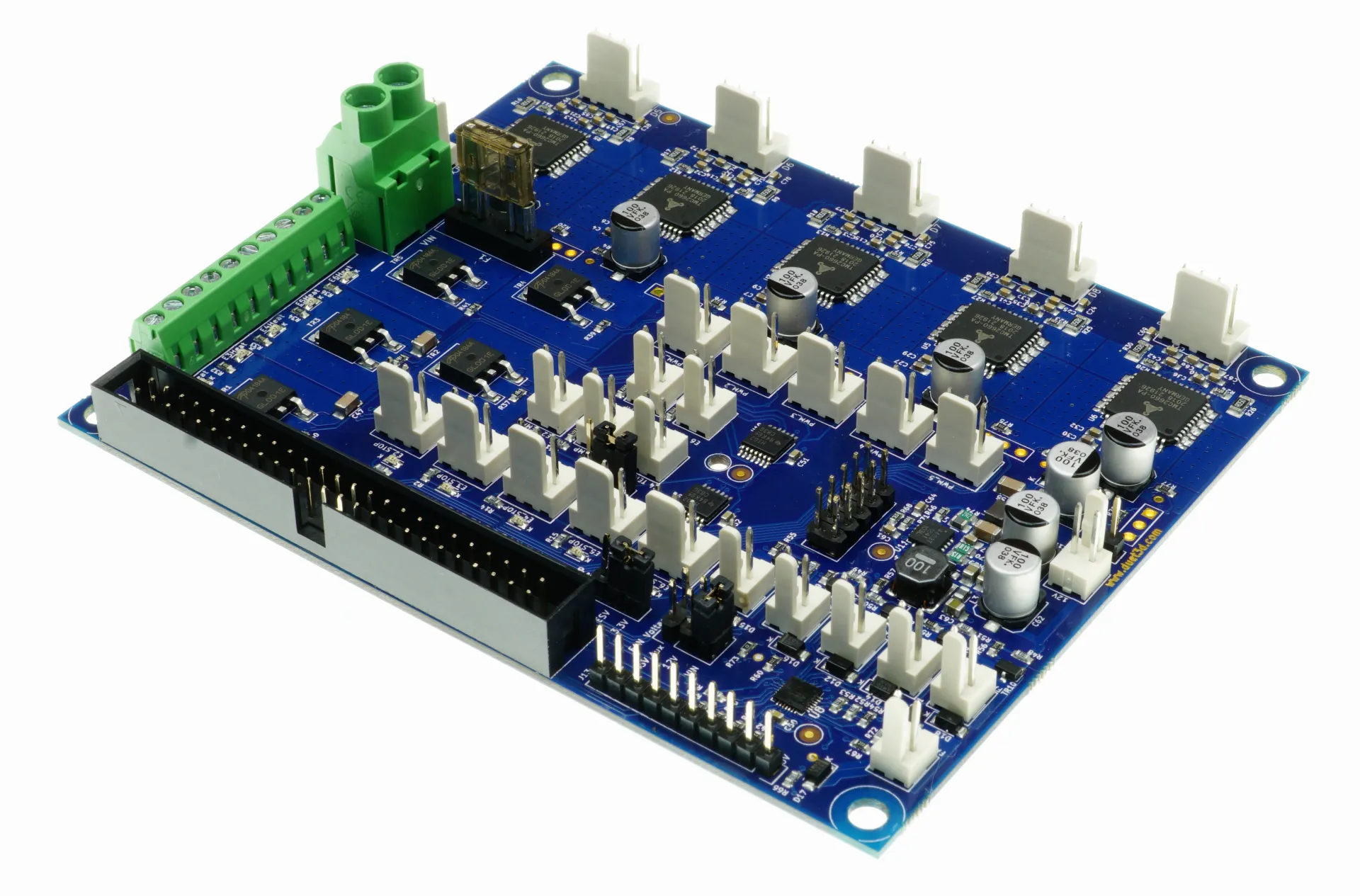

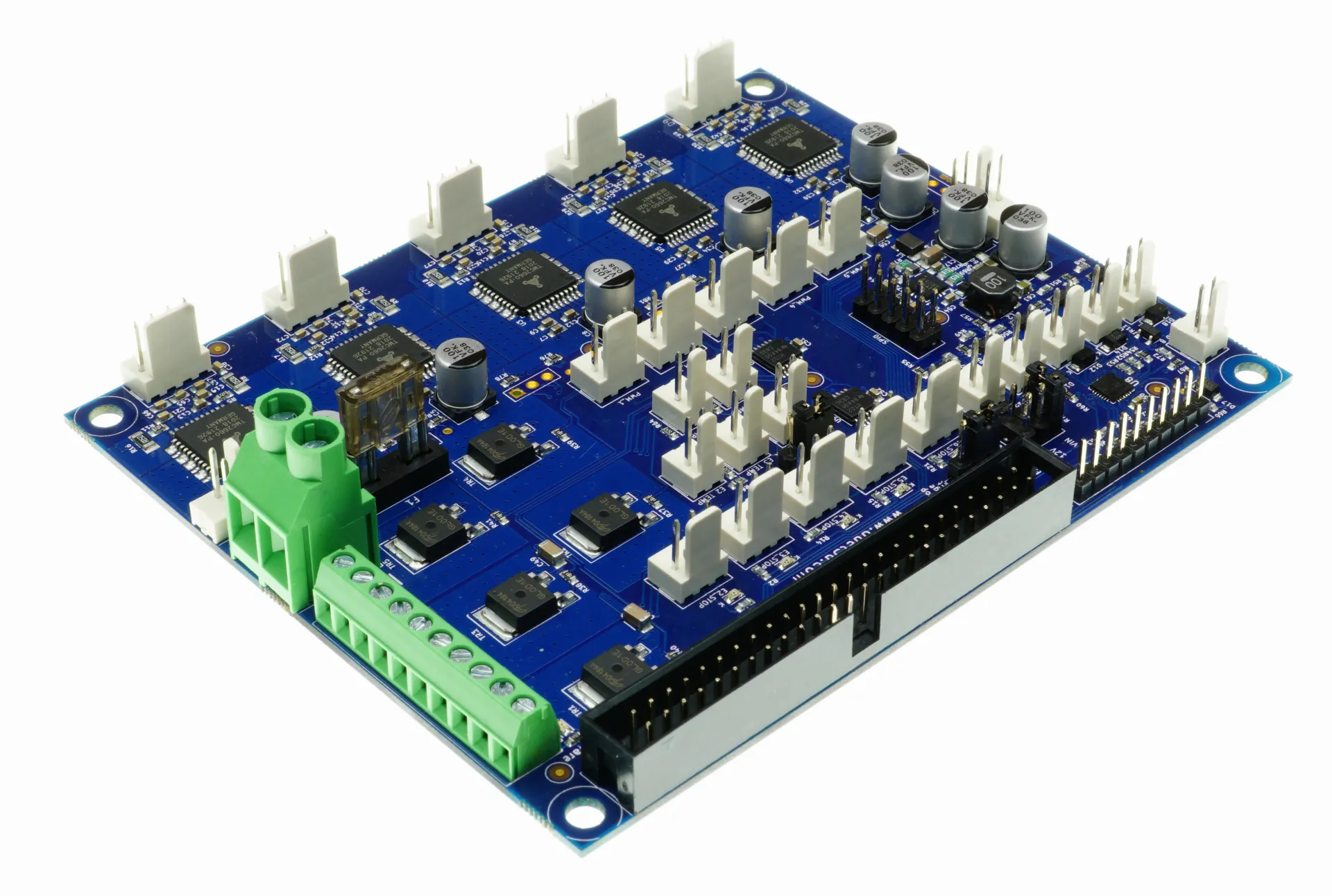

Duex5 v0.11 Expansion Board
  • 5Channels

$ 0.00

$ 82.50

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
