| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | H25D-SS-OMNI-ABZC-28V/V-SM18 |
| Body Material | Shaft 416 Stainless Steel |
| Enclosure Rating | NEMA 4 and 13 (IP66) |
| IP Rating | IP66 |
| Maximum Operating Temperature | 70 C |
| Minimum Operating Temperature | 0 C |
| Mounting Type | Flange Mount |
| NEMA Rating | 4 ; 13 |
| Number of Channels | 2 |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | 0 C |
| Orientation | Side |
| Output Type | Quadrature |
| Rotational Life | 200 M Cycles |
| Series | |
| Shaft Size | 3/8" |
| Special Features | Dual Channel w/Index ; Side Termination |
| Speed | 12,000 RPM Nominal |
| Supply Voltage | 5-28 V |
| Technology | Optical |
| Termination | M18 |
| Type | Incremental |
Overview

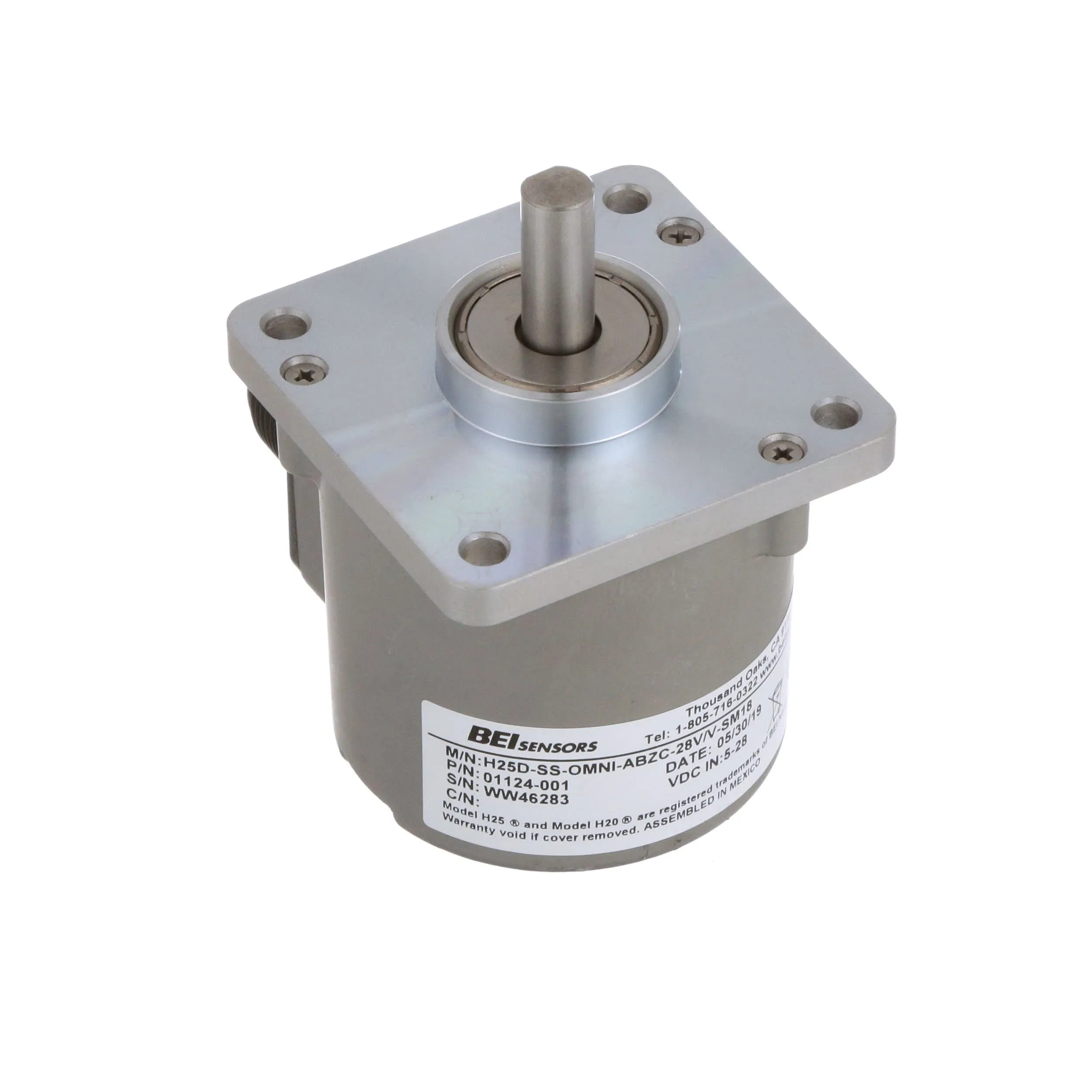

BEI Sensors Omnicoder® Model H25®:
The Omnicoder features a dynamic encoder resolution that allows users to easily program the encoder anywhere between 1 and 10,000 counts per turn. Packaged in BEI’s flagship Model H25® incremental encoder, the Omnicoder allows for virtually unlimited resolution variations. Using the simple programming interface software and USB interface cable, users can program the encoder resolution on site as needed. In the software, type the encoder resolution and click ‘Program’. A new resolution is now programmed. It’s that easy! With the Omnicoder, resolution can be programmed and reprogrammed at any time by the user. For users with multiple resolution requirements, Omnicoders can be kept in stock and programmed as needed.
Features:
Applications:
