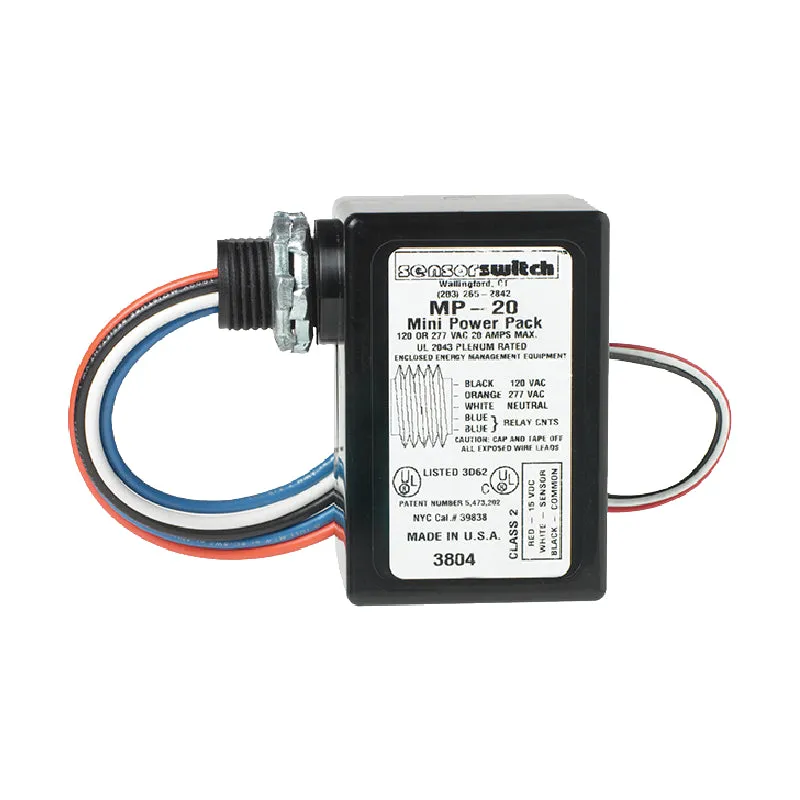

The MP20 mini power pack transforms 120, 240 or 277 Volts to Class II 15 VDC to power the remote sensors. Although Plenum Rated, the elongated mounting nipple allows for the MP20 to be mounted either directly through a 1/2 inch knockout in a junction box or to be located inside an adjacent box for specific local code requirements.

Features

• Mounting: 1/2” knockout
• Finish: Black
• Operating Voltage: 120V, 240V, 277V
• Relay Current Reqs: 40 mA
• Switching Load: 20 Amps Output
• Voltage/Current: 15 VDC, 150 mA at 120 or 277 VAC (MP20)
• Motor Load: 1 HP
