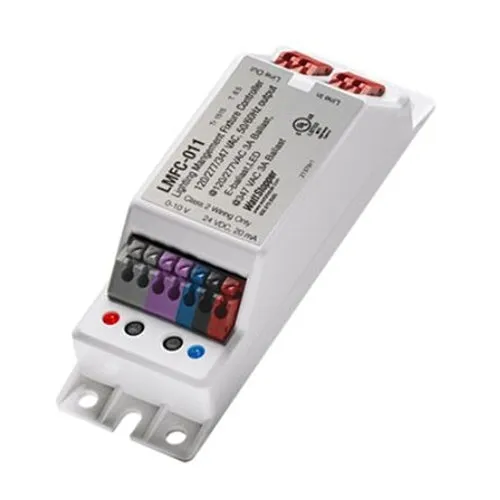

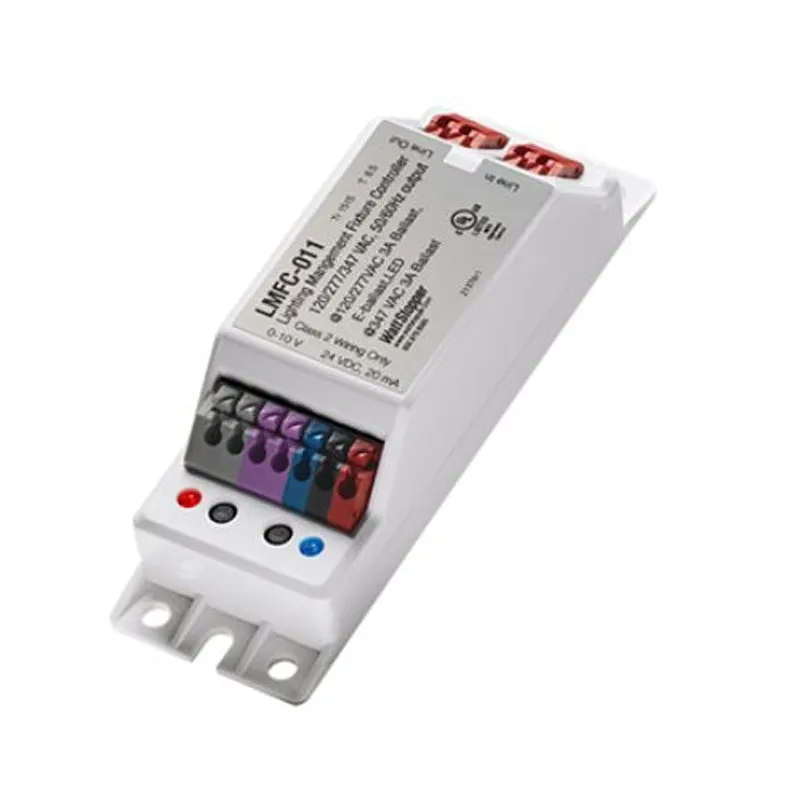

The LMFC-011 fixture controller mounts in individual lighting fixtures to give them connectivity to a Digital Lighting Management (DLM) system. The controller provides a 0-10 volt signal for control of dimmable loads including compatible LED drivers and electronic ballasts and connects to the DLM local network via a single- or dual-port RJ45 wiring whip (ordered separately).

Features:

• DLM cable connector whip not included
• Typical Applications: Open Offices, Conference/Training Rooms, Classrooms, Executive Offices, Lobbies, Corridors and Gymnasiums
• Special Features: 3A controller with line voltage relay and 0-10V dimming
• Load Rating: 120/277/34VAC, 50/60Hz
• Current consumption: 7mA
• Fixture-integrated dimming controller with relay for On/Off control
• Enables discrete control of individual lighting fixtures
• Separates RJ45 wiring whip mounts on fixture housing, and provides connectivity to DLM local network(ordered separately)
• Plug n' Go automatic configuration for maximum energy efficiency
• 0-10 volt dimming control
• Stores load preset level and 16 scene preset levels for each load

Model:

LMFC-011
