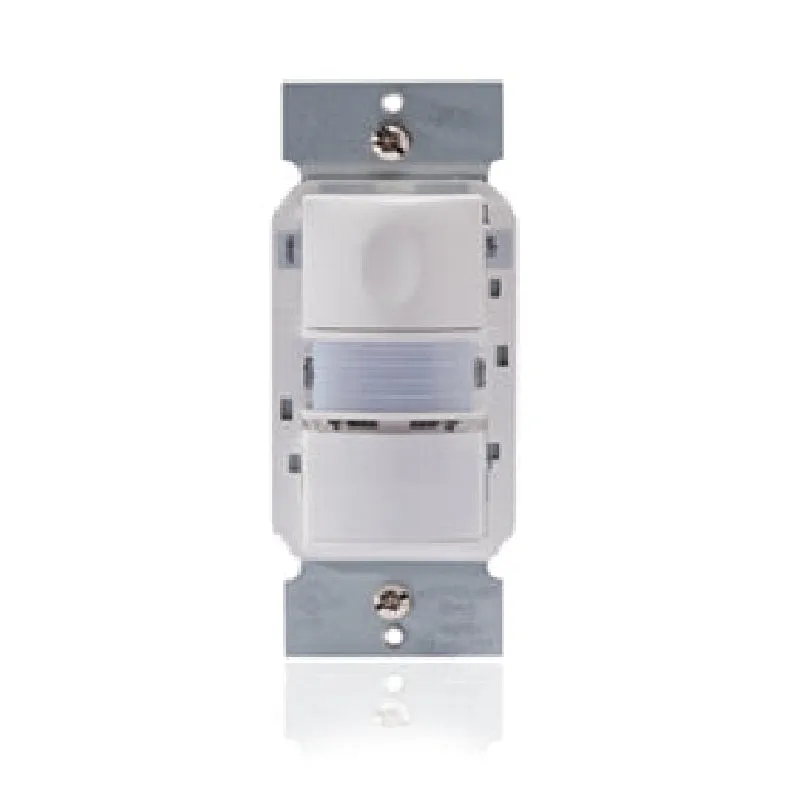

The PW-103N passive infrared (PIR) multi-way wall switch sensor turns lights OFF and ON based on occupancy. It provides high sensitivity to small and large movements, appealing aesthetics, a field selectable nightlight and a variety of features.

Features

• Wallplate sold separately
• Color: White, Light Almond, Ivory, Gray, Black
• Voltage: 120/277 VAC; 50/60 Hz
• Load Rating:
• 120 VAC: 0-800 W ballast or tungsten,1/6 hp
• 277 VAC: 0-1200 W ballast
• High sensitivity and dense coverage for exceptional performance
• Optional nightlight with choice of three colors and two light levels
• Color-matched lens and low profile for appealing design
• Allows multi-way control from one of up to four control locations
• Selectable operation, walk-through, test and presentation modes for increased energy savings and convenience
• Part of a comprehensive line of PIR, Ultrasonic and Dual Technology wall switch sensors
